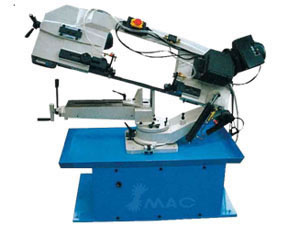

Serra de Fita para Cortar Metal

Serra de Fita para Cortar Metal (GB-916B)
BS-912GR
(O arco pode ser girado entre 90 ° e 45°)

BS-912B

BS-916V

BS-1018B

Item		15817	15817-1	15818	15819	15819-1	19820
Modelo		GB-916B	GB-916V	GB-1018B	GB-912B	GB-912G	GB-912GR
Max. capacidade	Circular @90°。	229mm	229mm	254mm	229mm	229mm	254mm
	Retangular @90°。	127 x 406mm	178 x 305mm	178 x 305mm	127 x 406mm	127 x 406mm	127 x 406mm
	Circular @90°。	150mm	150mm	165mm	150mm	150mm	150mm
	Retangular @90°。	150 x 190mm	127 x 150mm	100 x 204mm	150 x 190mm	150 x 190mm	150 x 190mm
lamina@60Hz		32, 60, 88, 115 (MPM)	38, 78, 115 (MPM)	38, 78, 115 (MPM)	35, 60, 88, 115 (MPM)	22-122 (MPM)	35, 60, 88, 115 (MPM)
@60Hz		26, 50, 73, 95(MPM)	31, 65, 95(MPM)	31, 65, 95(MPM)	26, 50, 73, 95(MPM)	18-102(MPM)	26, 50, 73, 95(MPM)
Tamanho de lamina		27 x 0.9 x 2655mm	27 x 0.9 x 2655mm	27 x 0.9 x 2655mm	27 x 0.9 x 3090mm	27 x 0.9 x 3090mm	27 x 0.9 x 3276mm
Motor		735W (1HP), 50/60Hz	735W (1HP), 50/60Hz	735W (1HP), 50/60Hz	1.1KW (1.5HP), 50/60Hz	1.1KW (1.5HP), 50/60Hz	1.4KW (2HP), 50/60Hz
Tração		V- cinto	Caixa de velocidades	Caixa de velocidades	V-cinto	V-cinto	V-cinto
Tamanho de embalagem		1600 x 600 x 1150mm	1600 x 630 x 1150mm	1600 x 740 x 1150mm	1760 x 830 x 1150mm	1760 x 830 x 1150mm	1900 x 940 x 1150mm
N.W./G.W.		200/248kg	210/258kg	200/248kg	280/340kg	300/360kg	310/397kg
Modelo velho		BS-916B	BS-916V	BS-1018B	BS-912B	BS-912G	BS-912GR
